PSW-ECO Pallet Wrapper Machine

PSW-ECO pallet stretch wrapper with power pre-stretch, by Advantage Machinery. A heavy-duty turntable wrapper for high-volume production.

PLC control for consistent wraps every time, with independent programming for the number of wraps at the top and bottom of the pallet.
Speed control for both the turntable and the film carriage.
Power pre-stretch mechanism with 250% mechanical pre-stretch, for maximum film savings.
Sensors detect the pallet height.
59 in turntable, up to 12 RPM. Maximum pallet weight 4,000 lb.
Mast height 94 in, for pallets up to 86 in tall.
110 V, single phase, 9 A. Machine weight 1,700 lb.
Options include a loading ramp, an extended mast, a larger turntable and a built-in scale.

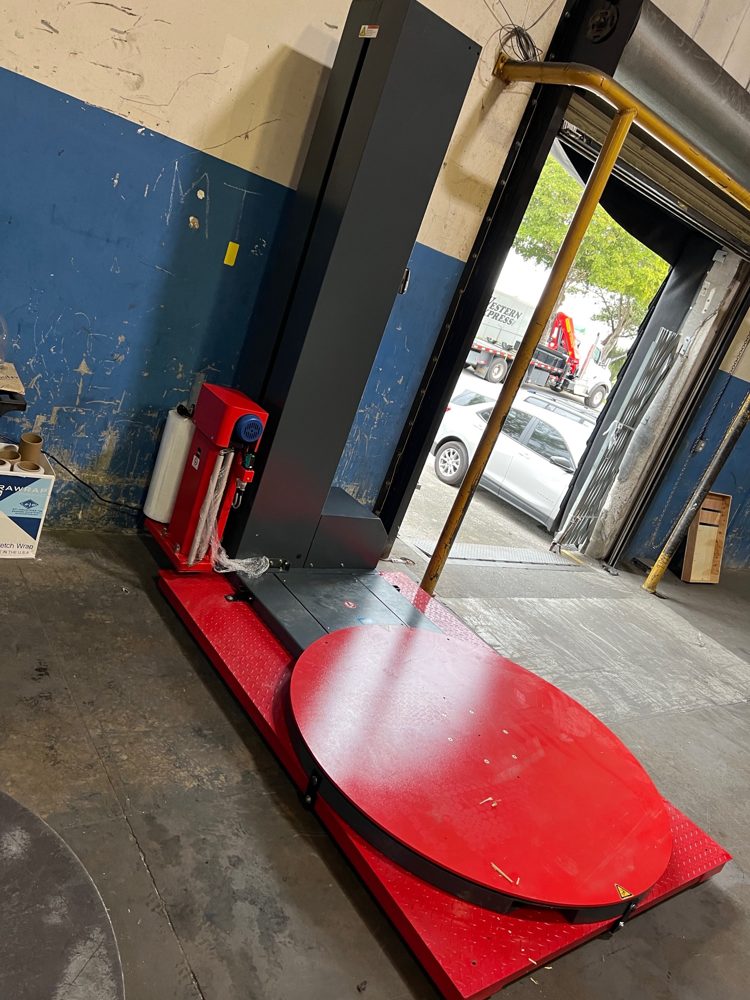

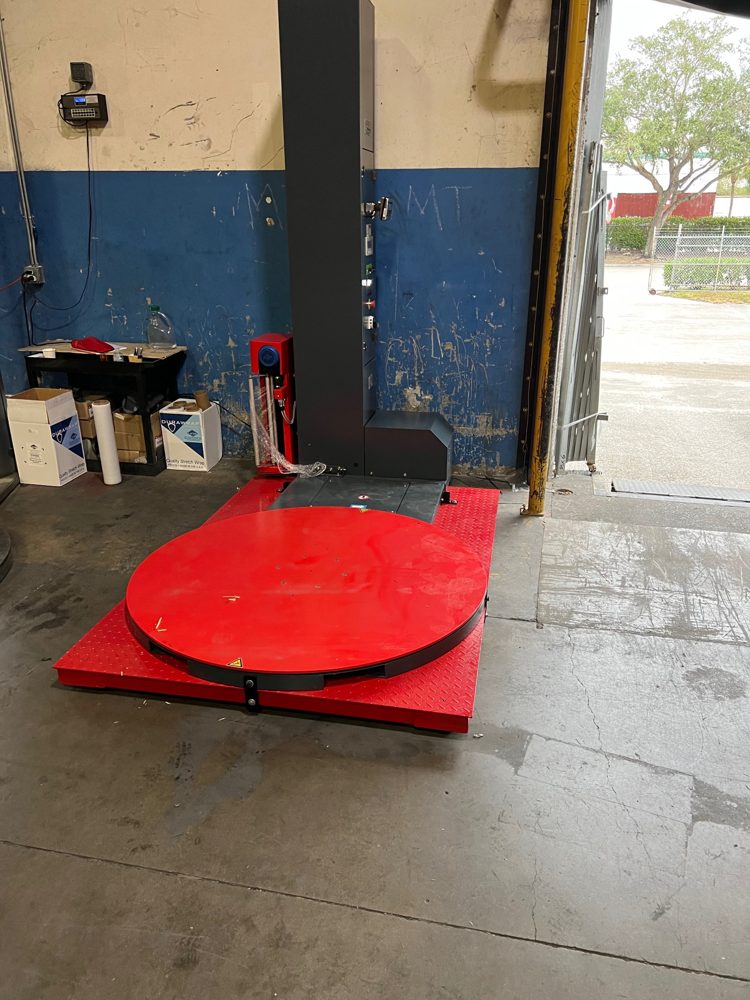

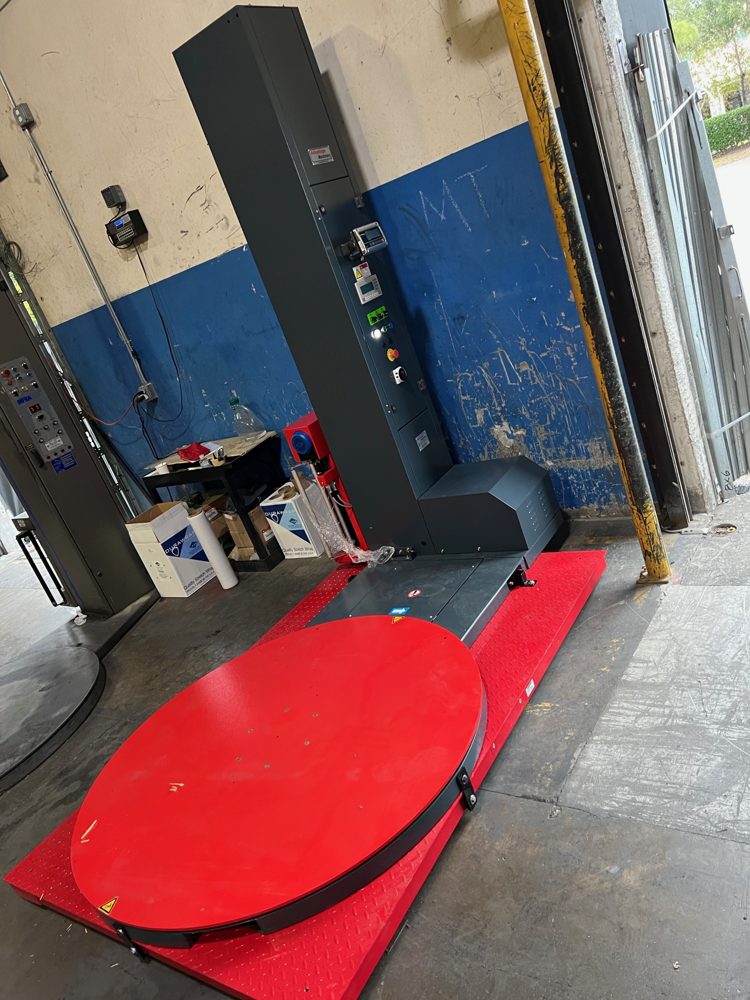

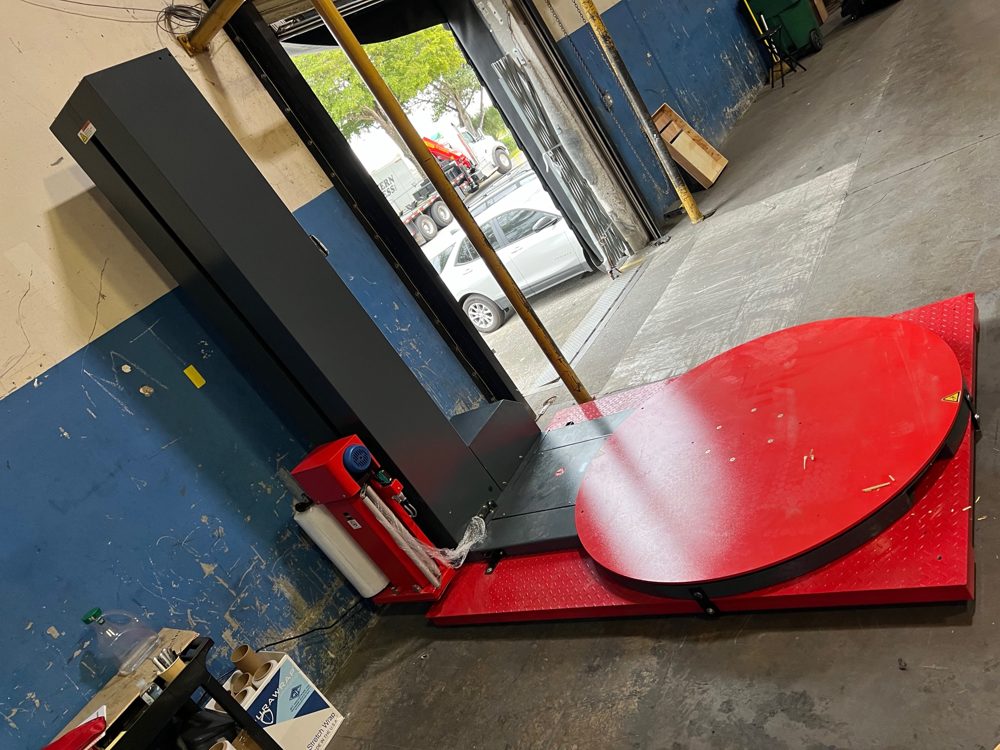

Photos from a Smith Scale installation:
